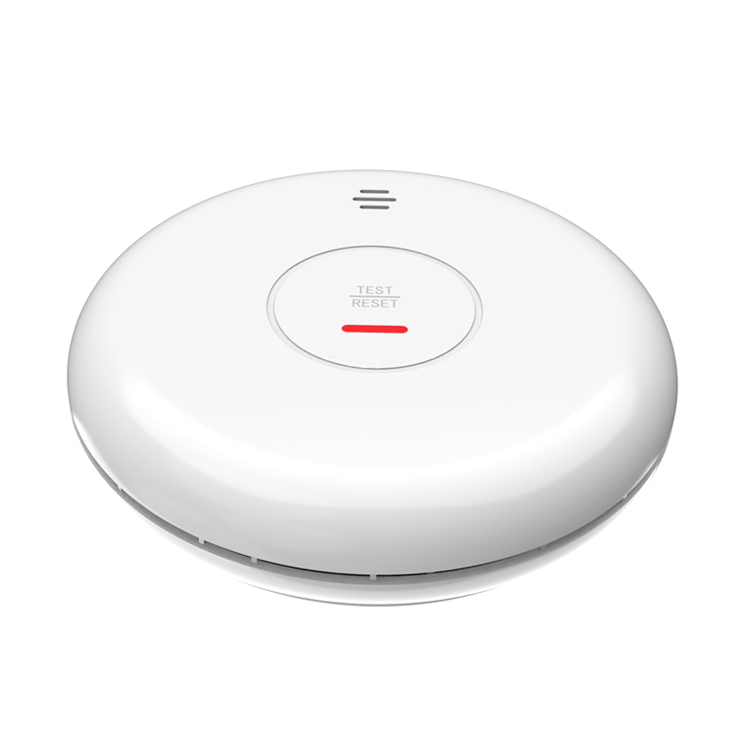

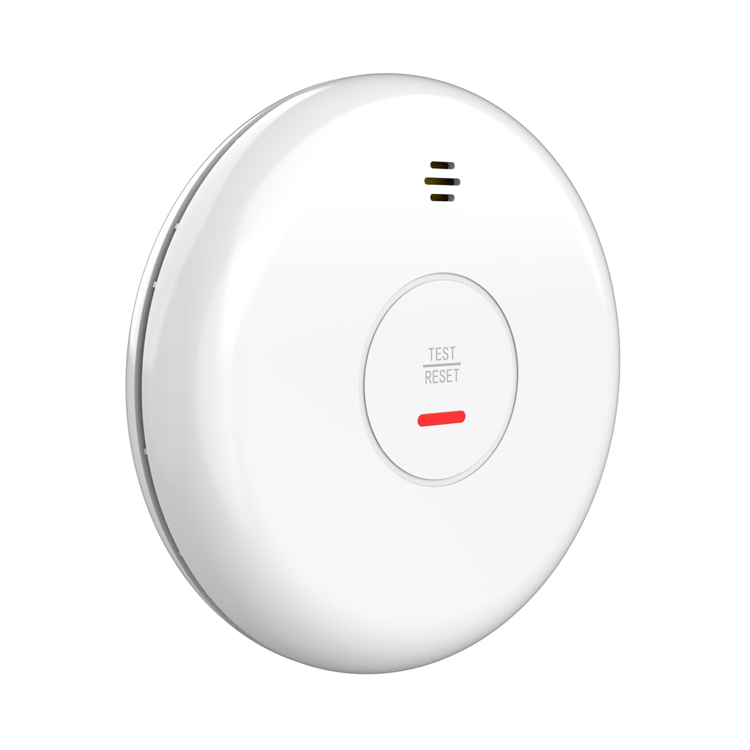

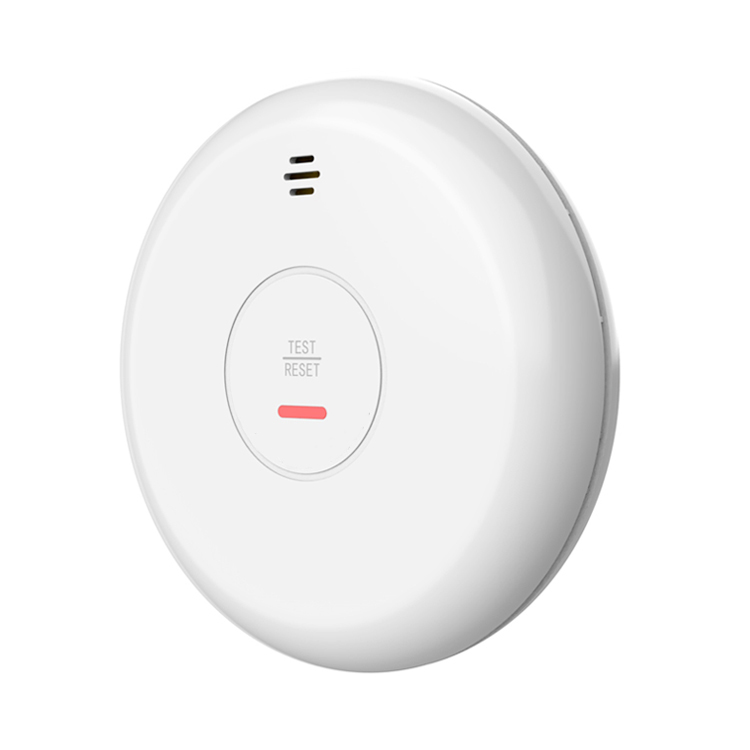

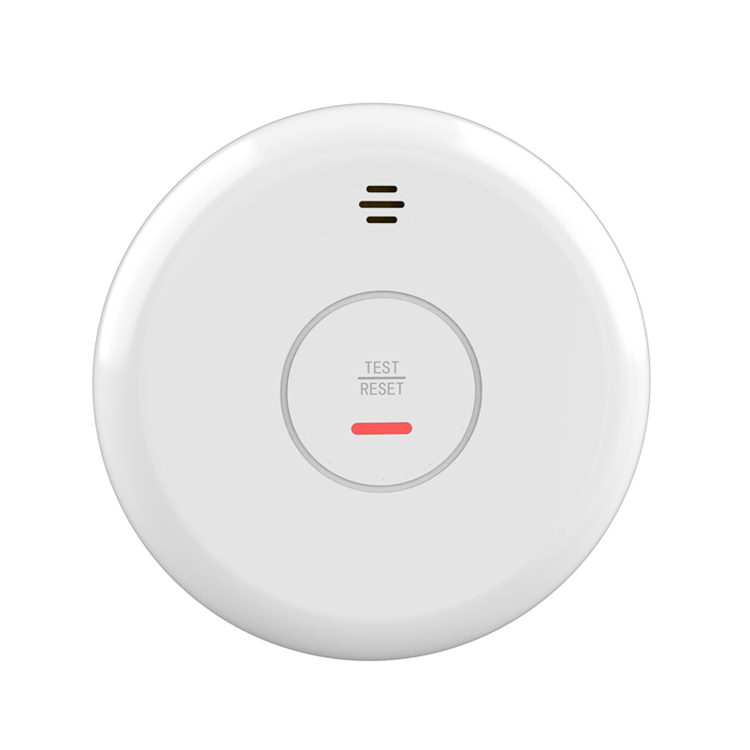

Standalone Smoke Detector

Product Name Standalone Smoke Detector
Model SD-434
Operating Voltage 3V lithium battery(CR123A)
Standby Current ≤ 7uA
Alarm Current ≤ 50mA
Sensitivity 0.08~0.16 dB/m
Alarm Sound Pressure ≥ 85dB@3m
Material ABS
Dimension Ø120 * H28 mm
Detail

【 Product Parameter】


•   Operating voltage :                                                           3V lithium battery(CR123A)

•   Standby current :                                                              ≤ 7uA

•   Alarm current :                                                                  ≤ 50mA

•   Sensitivity :                                                                        0.08~0.16 dB/m

•   Alarm sound pressure :                                                     ≥ 85dB@3m

•   Indicator LED of alarm :                                                    red LED flash

•    Battery life:                                                                        10 years

•   Material :                                                                              ABS

•   Certificate :                                                                          EN14604 by TUV lab

•   Operation temperature ：                                                   0℃~50℃

•   Operation humidity ：                                                        ≤ 95%RH(no condensation)

•   Installation method :                                                           Ceiling mount

•   Dimension ：                                                                                     Ø120 * H28mm



【 Product Introduction 】


DELING’s single station photoelectric smoke detector is designed to sense smoke that comes into the detector chamber. It does not sense gas, heat, or flame.   This smoke

detector is designed to give early warning of developing fires by giving off the alarm sounds from its built-in alarm horn. It can provide precious time for   you and your family

to escape before   a   fire   spreads.This product has a built in 3V lithium battery, which does not need to be replaced. The battery can be used for up to 10 years, which is very

convenient. However,   the smoke detector makes such pre-warning of fire accident possible, only if the detector is located, installed , and maintained properly as described in

this User's Manual.
